Product Specifications

• Brand: Comfast
• Model: CF-EW71
• Standards: Wi-Fi 802.11 g/n
• Frequency Band: 2.4 GHz
• Antenna: External Antenna
• Hardware specification:
• Qualcomm: QCA9531 650Mhz main frequency
• Memory: 64 MB
• Flash: 16 MB;
• Amplifier chip: SE2576L "2
• Antenna specification: 5dBi*2 external antenna
• Wireless standard: support eee802.11b /g/n standard;
• Rf parameters:
• Transmission power :500mW(27dBm)
• Receiving sensitivity: -96dbm
• Operating frequency :802.11b/g/n: 2.412ghz-2.484ghz
• Data rate:
• 11 b: 1,2,5.5, 11 MBPS
• 11 g: 6,9,12,18,24,36,48,54 Mbps
• 11n: McSo-mcs15 (20MHz and 40MHz analog bandwidth)
• 20 MHZ, 144.4 megabits per second
• 40 MHZ: 300 MBPS
• Physical interface:
• One 10/100mbps WAN RJ45 Ethernet port, supporting POE power supply;
• One 10/100mbps LAN RJ45 Ethernet port, supporting POE power supply;
• 1 RESET button;
• Indicator light: Power /WAN /LAN/ WiFi
• Power supply: POE power supply, support 802.3af/802.3at standard (up to 100m)
• Power adapter :48V 0.32a POE power adapter (configured)
• Power consumption: < 8 w

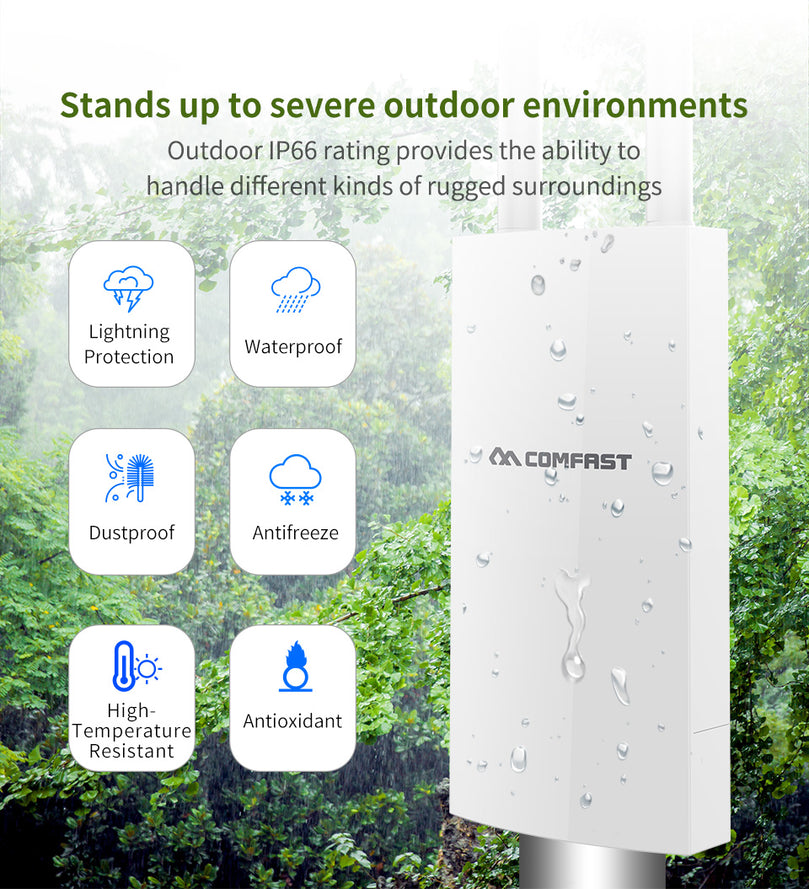

• Protection level: IP66
• MTBF: > 250000 h

• Features:

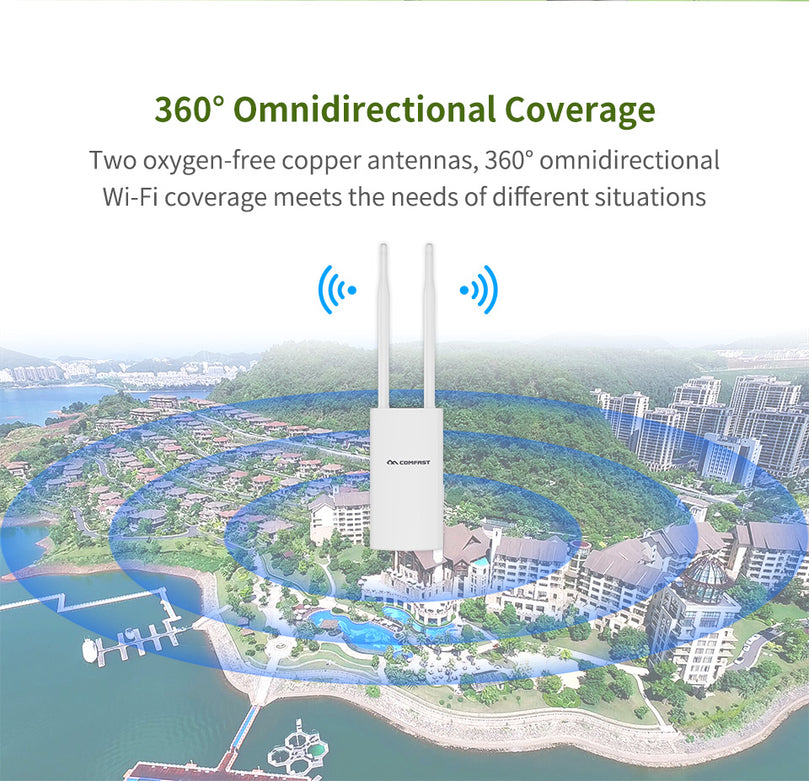

• Two oxygen-free copper antennas, 360° omnidirectional WiFi coverage meets the needs of different situations.

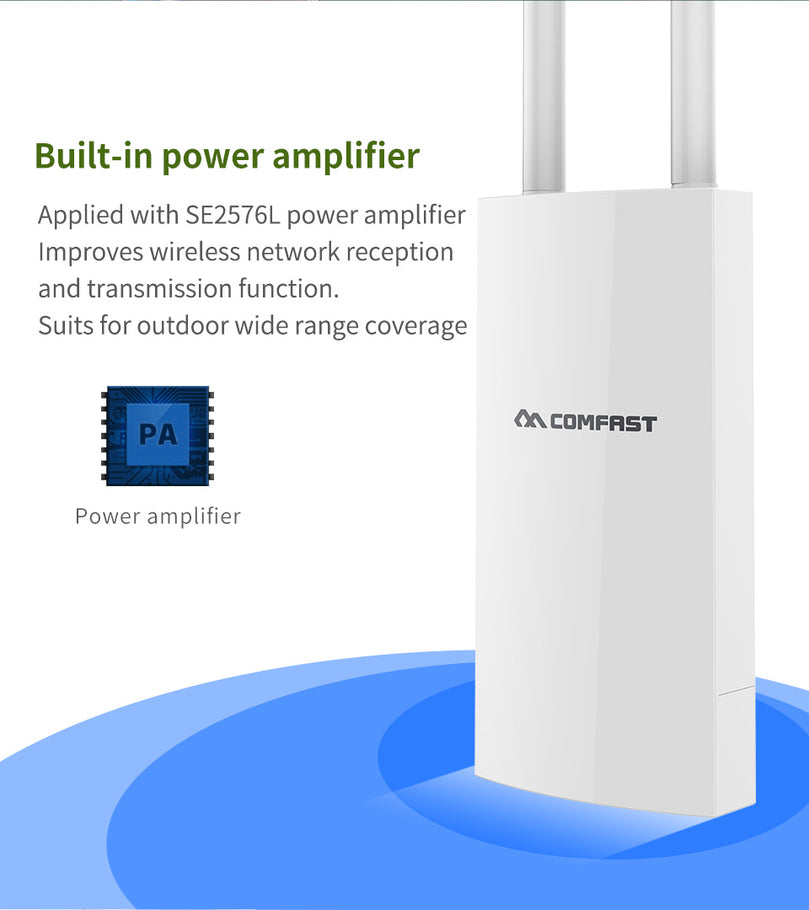

• Applied with SE2576L power amplifier, improves wireless network reception and transmission function.

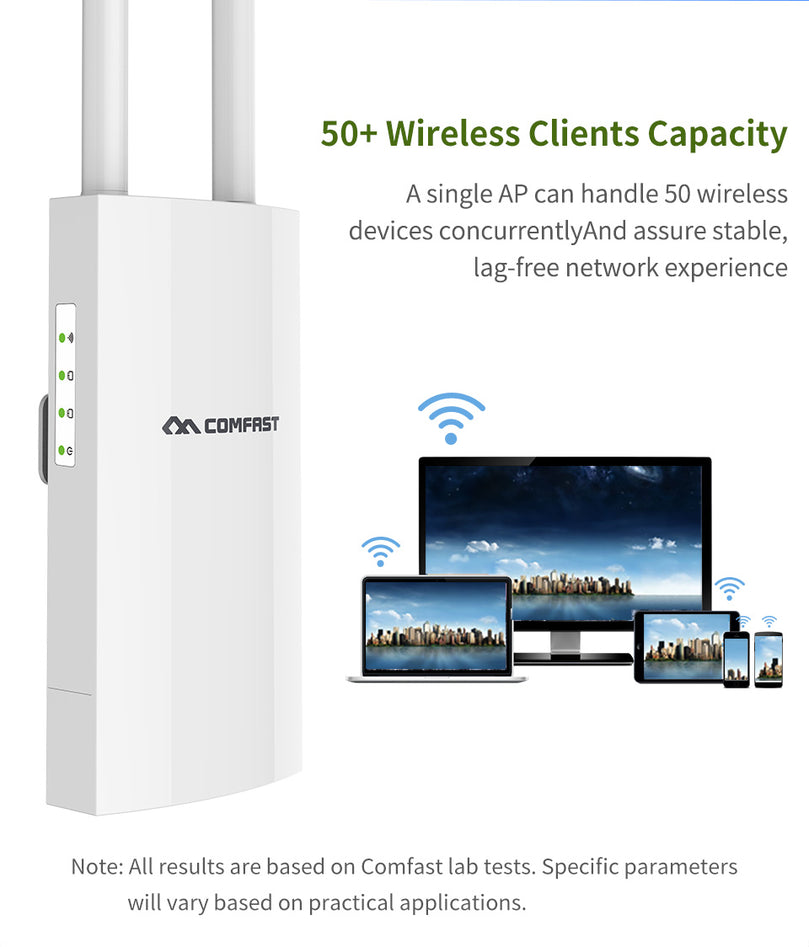

• A single AP can hand     12: IEEE802.11b/g/n;
• Power Consumption: <8W
• IP Rating: IP66 Rating
• MTBF: >250000H
• Mounting Methods: Wall-mounting, Pole mounting
• Shell Material: ABS
