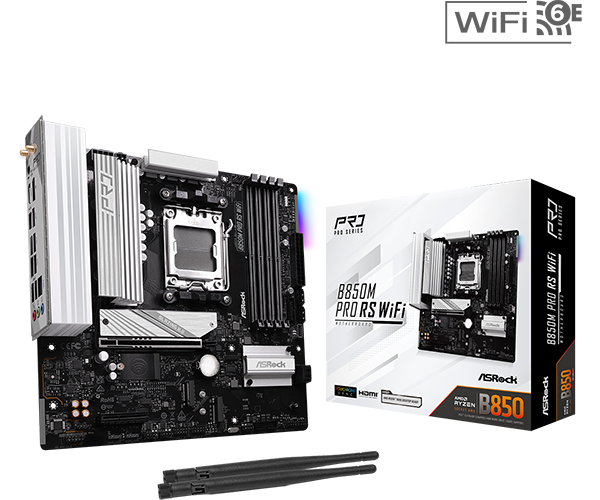

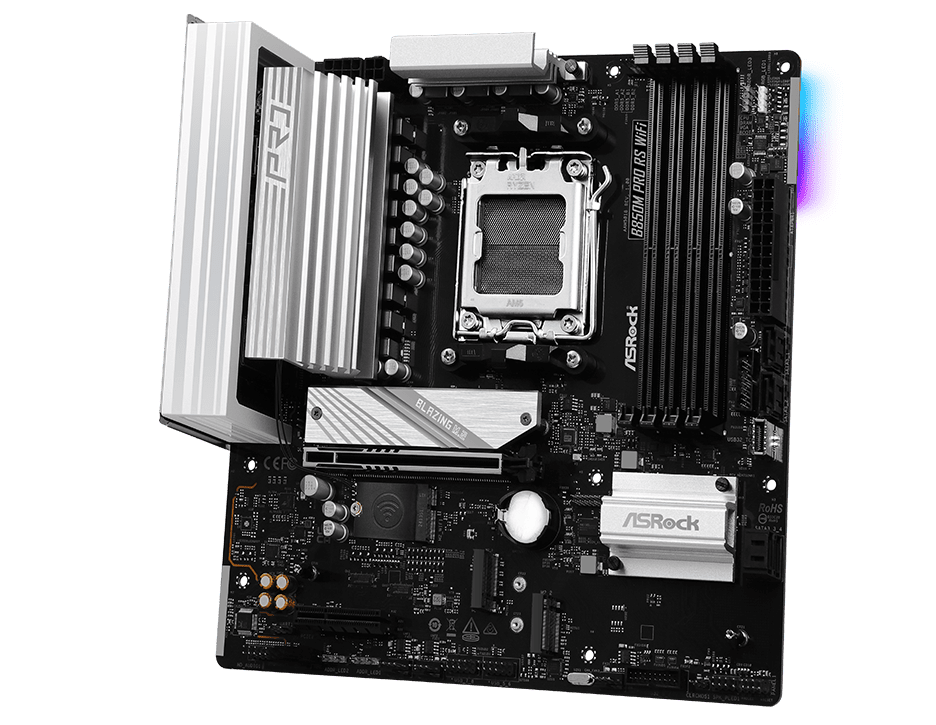

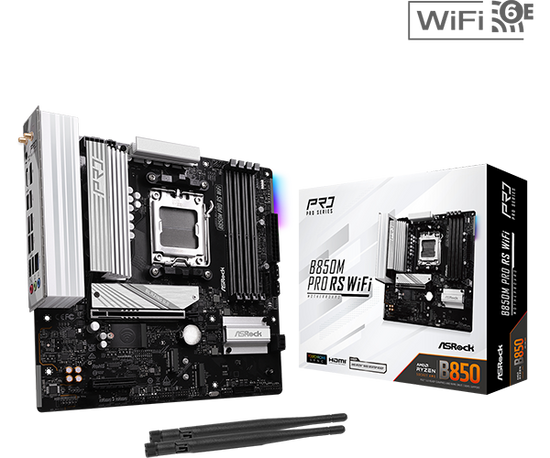

ASROCK B850M PRO RS WIFI DDR5 AMD MOTHERBOARD
- Regular price
- ₱12,699.00
- Sale price
- ₱12,699.00
- Regular price
-
- Unit price
- per
Category Details Unique Features - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 - 8+2+1 Power Phase, Dr.MOS - Pre-Installed I/O Shield - 2.5G...
Type: MOTHERBOARD
Sku:
Availability:
Out Of Stock
Couldn't load pickup availability
Shipping & Returns
Free shipping and returns available on all orders!
We ship all US domestic orders within 5-10 business days!
size chart
Care Instructions
Use a soft damp cloth and a drop of mild soap to remove any haze. Air dry.
Share
| Category | Details |
|---|---|
| Unique Features | - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 - 8+2+1 Power Phase, Dr.MOS - Pre-Installed I/O Shield - 2.5G LAN, Wi-Fi 6E - BIOS Flashback Button - ASRock Auto Driver Installer - ASRock Post Status Checker |
| CPU Support | AMD Socket AM5 Ryzen™ 9000, 8000, 7000 Series Processors* |
| Chipset | AMD B850 |
| Memory | - Dual Channel DDR5 - 4 x DDR5 DIMM Slots - Up to 8000+(OC) - Max 256GB - Supports ECC/non-ECC, un-buffered - XMP & EXPO support |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | Integrated AMD RDNA™ (varies by CPU) - HDMI 2.1: up to 4K 120Hz - DisplayPort 1.4: up to 4K 120Hz |
| Audio | - 7.1 CH HD Audio (Realtek ALC897) - Nahimic Audio |
| LAN | - 2.5G LAN (Dragon RTL8125BG) - Smart Bandwidth Control - Game/Browser/Streaming Modes - Visual UI & Stats |
| Wireless LAN | - Wi-Fi 6E (802.11axe) - Dual-Band 2x2 - Bluetooth 5.2 - MU-MIMO *Windows 11 only |
| Expansion Slots |
CPU: - 1 x PCIe 5.0 x16 (PCIE1) - 1 x PCIe 4.0 x4 (PCIE2) Chipset: - 1 x M.2 (Key E) WiFi/BT *PCIE1 varies by CPU |
| Storage |
CPU: - 1 x M.2 Gen5x4 (M2_1) - 1 x M.2 Gen4x4 (M2_3) Chipset: - 1 x M.2 Gen4x4 (M2_2) - 4 x SATA3 6Gb/s *M2_1 priority; M2_3 disables PCIE2 |
| RAID Support | RAID 0, 1, 10 for SATA & M.2 NVMe* |
| USB Ports |
CPU: - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) Chipset: - 1 x USB 3.2 Gen1 Type-C (Front) - 6 x USB 3.2 Gen1 Type-A - 8 x USB 2.0 |
| Connectors | - SPI TPM Header - Power LED/Speaker Header - RGB & Addressable LED Headers - CPU & Chassis Fan Connectors (Smart Fan Control) - ATX & 12V Power Connectors - Front Panel Audio - USB 2.0 & 3.2 Gen1 Headers |
| Rear I/O Panel | - 2 x Antenna Ports - HDMI & DisplayPort - USB 3.2 Gen2 (Type-A & Type-C) - USB 3.2 Gen1 x2 - USB 2.0 x4 - RJ-45 LAN - BIOS Flashback Button - HD Audio Jacks |
| Software & UEFI | - ASRock A-Tuning - Dragon LAN Software - Polychrome SYNC - EZ Mode, Full HD UEFI - Auto Driver Installer - Instant Flash |
| Accessories | - 2 x SATA Data Cables - 2 x ASRock WiFi Antennas |
| Form Factor | Micro ATX (9.6" x 9.6" / 24.4 cm x 24.4 cm) |
| Operating System | Microsoft Windows 11 64-bit / Windows 10 64-bit (limited Wi-Fi 6E support) |
| Certifications | FCC, CE, ErP/EuP Ready |
