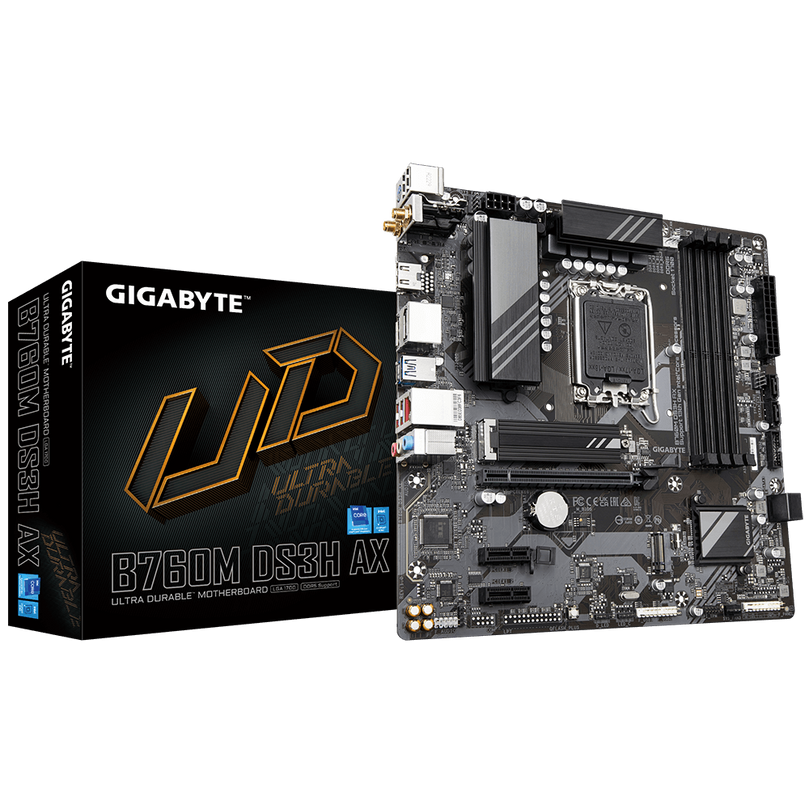

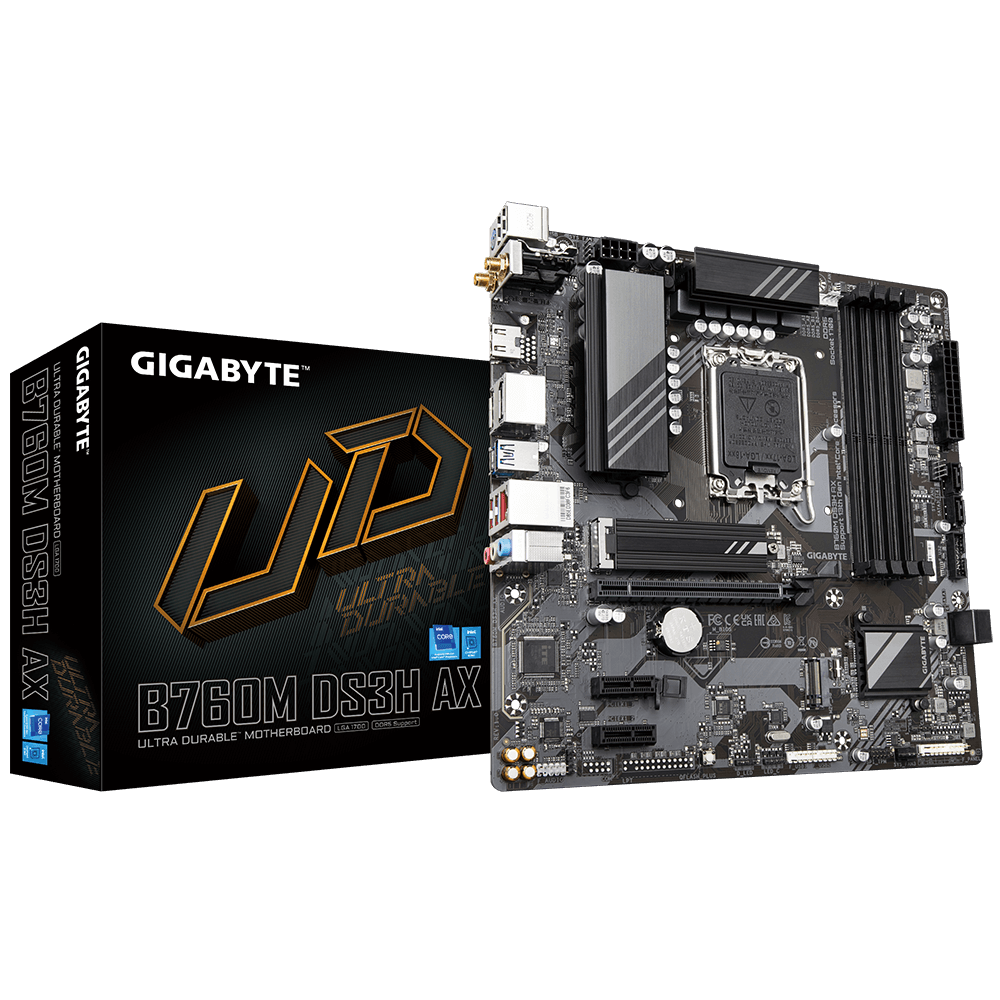

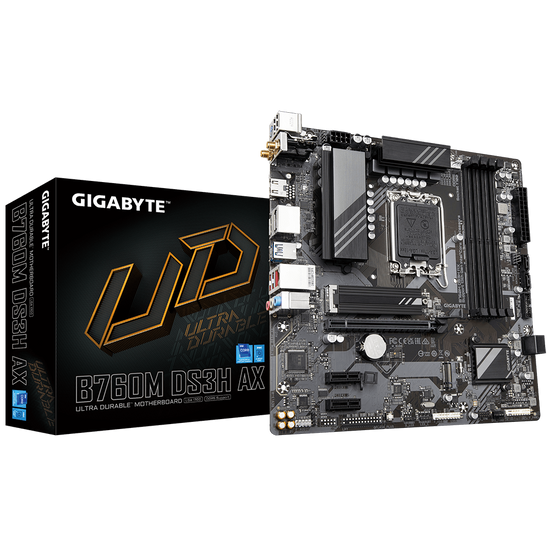

GIGABYTE B760M DS3H AX DDR5 WIFI MOTHERBOARD
- Regular price
- ₱9,749.00
- Sale price
- ₱9,749.00
- Regular price
-
- Unit price
- per
Category Specification CPU LGA1700 socket: Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors L3 cache varies with CPU Chipset Intel®...
Type: MOTHERBOARD
Sku:
Availability:
In Stock
Couldn't load pickup availability
Shipping & Returns
Free shipping and returns available on all orders!
We ship all US domestic orders within 5-10 business days!
size chart
Care Instructions
Use a soft damp cloth and a drop of mild soap to remove any haze. Air dry.
Share
| Category | Specification |
|---|---|
| CPU | LGA1700 socket: Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors |
| L3 cache varies with CPU | |
| Chipset | Intel® B760 Express Chipset |
| Memory | Supports DDR5 7600(O.C.) to 4000 MT/s modules, dual-channel, up to 256 GB |
| ECC and non-ECC un-buffered DIMMs; XMP support | |
| Onboard Graphics | Integrated Intel® HD Graphics, HDMI (4096x2160@60 Hz), DisplayPort (4096x2304@60 Hz), triple display |
| Audio | Realtek® Audio CODEC, High Definition Audio, supports 2/4/5.1/7.1 channels, S/PDIF Out |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication | AMD Wi-Fi 6E RZ608, Intel® Wi-Fi 6E AX210/AX211, Realtek® Wi-Fi 6E RTL8852CE, Bluetooth 5.2/5.3 |
| Expansion Slots | 1 x PCIe 4.0 x16 (CPU); 2 x PCIe 3.0 x1 (Chipset) |
| Storage Interface | 1 x M.2 (PCIe 4.0 x4/x2) (CPU), 1 x M.2 (PCIe 4.0 x4/x2) (Chipset), 4 x SATA 6Gb/s |
| Supports RAID 0, RAID 1, RAID 5, and RAID 10 | |
| USB | USB Type-C® 3.2 Gen 2, USB 3.2 Gen 1 (5 ports), USB 2.0/1.1 (6 ports) |
| Internal I/O Connectors | 24-pin ATX power, 8-pin ATX 12V, CPU/system fan headers, LED headers, M.2/SATA connectors |
| Front panel and audio headers, USB 3.2 Gen 1, USB 2.0/1.1 headers, TPM header, Q-Flash button | |
| Back Panel | USB 2.0/1.1 ports (2), PS/2 keyboard/mouse, SMA antenna, HDMI, DisplayPort (2), RJ-45, audio jacks |
| USB Type-C® 3.2 Gen 2, USB 3.2 Gen 1 (3 ports) | |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, fan speed detection, water cooling flow rate, fan fail warning/control |
| BIOS | 128 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus |
| Bundled Software | Norton® Internet Security (OEM version), LAN bandwidth management |
| Operating System | Supports Windows 11 64-bit and Windows 10 64-bit |
| Form Factor | Micro ATX, 24.4cm x 24.4cm |
