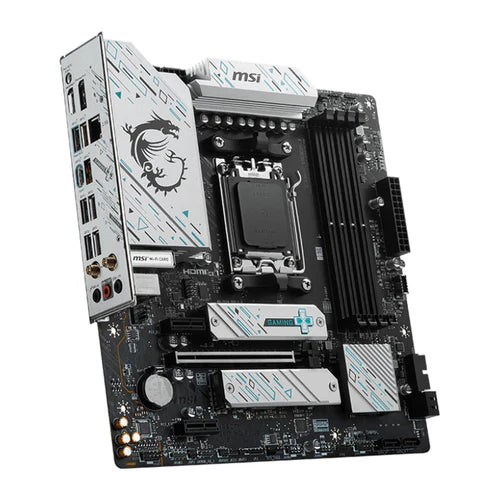

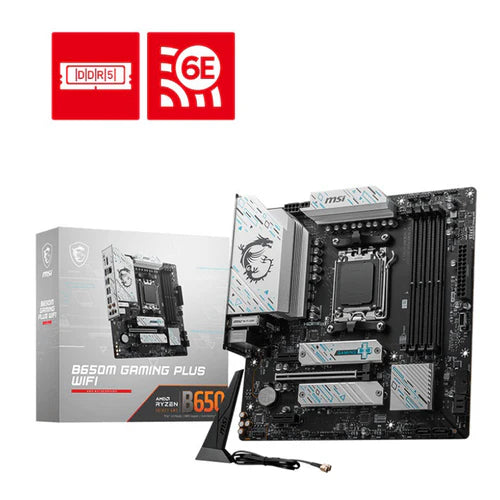

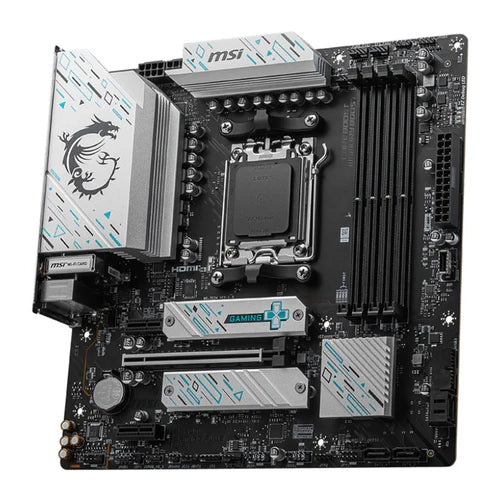

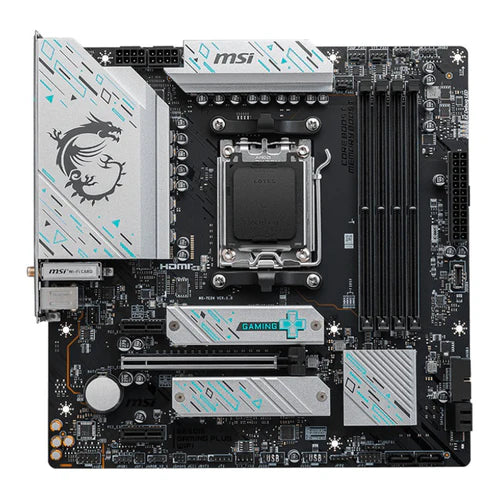

MSI B650M GAMING PLUS WIFI AMD DDR5 MOTHERBOARD
- Regular price
- ₱10,899.00
- Sale price
- ₱10,899.00
- Regular price
-
- Unit price
- per
Description B650M GAMING PLUS WIFI Supports AMD Ryzen™ 8000 / 7000 Series Desktop Processors Supports DDR5 Memory, up to 7200+(OC) MHz Enhanced Power Design: 10+2+1...
Type: MOTHERBOARD
Sku:
Availability:
In Stock
Couldn't load pickup availability
Shipping & Returns
Free shipping and returns available on all orders!
We ship all US domestic orders within 5-10 business days!
size chart
Care Instructions
Use a soft damp cloth and a drop of mild soap to remove any haze. Air dry.
Share
Description
B650M GAMING PLUS WIFI
- Supports AMD Ryzen™ 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, up to 7200+(OC) MHz
- Enhanced Power Design: 10+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen4 M.2, USB 3.2 Gen 2
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper
| Category | Specification |
|---|
| Chipset | AMD B650 |
| CPU Support | AMD Ryzen™ 8000 / 7000 Series Desktop Processors |
| Memory Support | - 4x DDR5 UDIMM (Dual-Channel) - Max Capacity: 256GB - Speeds: - DDR5 4800 (JEDEC) MHz - DDR5 5000–7200+ (OC) MHz - Non-ECC, un-buffered memory - Supports AMD EXPO™ |
| Max OC Memory Speed | - 1DPC 1R: Up to 7200+ MHz - 1DPC 2R: Up to 6000+ MHz - 2DPC 1R: Up to 6000+ MHz - 2DPC 2R: Up to 5400+ MHz |
| Onboard Graphics | - 1x HDMI™ 2.1 (Max: 4K@60Hz)* - 1x DisplayPort 1.4 (Max: 4K@60Hz)* *Available only with processors that have integrated graphics |
| PCIe Slots | - 1x PCIe x16 - x16 for Ryzen 7000 - x8 for Ryzen 8700G / 8600G - x4 for Ryzen 8500G - 2x PCIe x1 (1x PCIe 3.0, 1x PCIe 4.0) |
| Storage | - 2x M.2 (From CPU): - PCIe 4.0 x4, 2280/2260 - M.2_2 = PCIe 4.0 x2 with Ryzen 5 8500G - 4x SATA 6G |
| RAID Support | - SATA: RAID 0/1/10 - M.2 NVMe: RAID 0/1 |

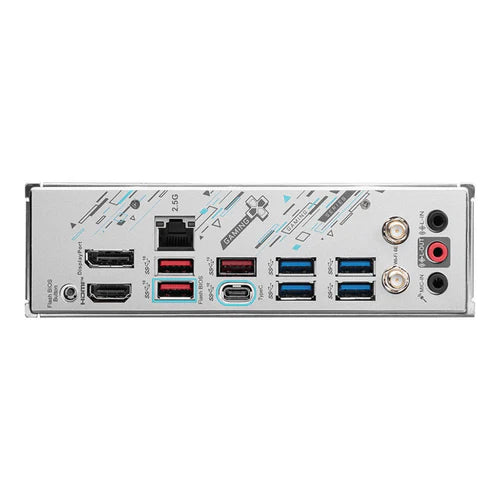

| USB Ports | - Front: - 4x USB 2.0 - 2x USB 5Gbps Type-A - 1x USB 10Gbps Type-C - Rear: - 4x USB 5Gbps Type-A - 3x USB 10Gbps Type-A - 1x USB 10Gbps Type-C |
| LAN | Realtek® RTL8125BG 2.5Gbps LAN |
| Wireless / Bluetooth | - AMD Wi-Fi 6E - Bluetooth® 5.3 - MU-MIMO TX/RX - 20/40/80/160 MHz on 2.4/5/6 GHz bands - Pre-installed M.2 (Key-E) wireless module |
| Audio | Realtek® ALC897 Codec 7.1-Channel HD Audio |
| Internal I/O | - 1x ATX Power Connector - 2x CPU Power Connector - 1x CPU Fan - 1x Pump Fan - 3x System Fan - 2x Front Panel Header (JFP) - 1x Chassis Intrusion (JCI) - 1x Front Audio (JAUD) - 1x Tuning Controller (JDASH) - 2x Addressable RGB (JARGB_V2) - 2x RGB LED (JRGB) - 1x TPM Header (TPM 2.0) - USB: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C |
| LED Features | 4x EZ Debug LED |
| Operating System | Windows 10 (64-bit) Windows 11 (64-bit) |
| Form Factor | mATX (Micro-ATX) 243.84mm x 243.84mm |
