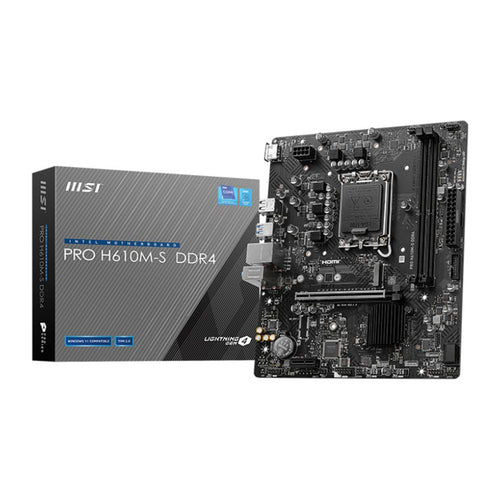

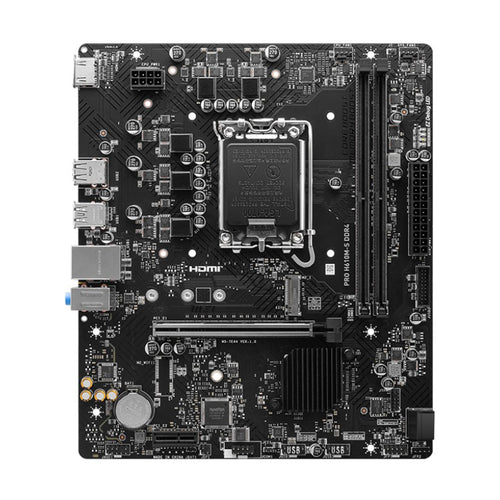

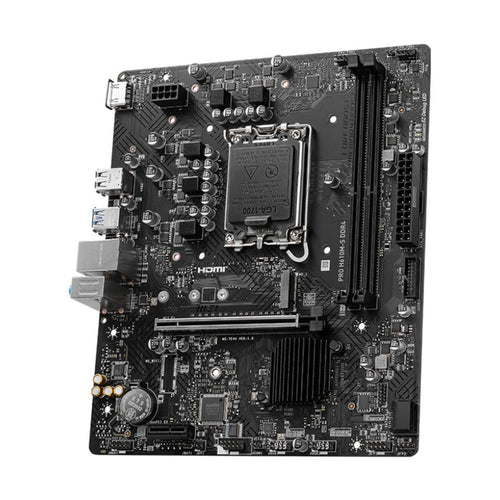

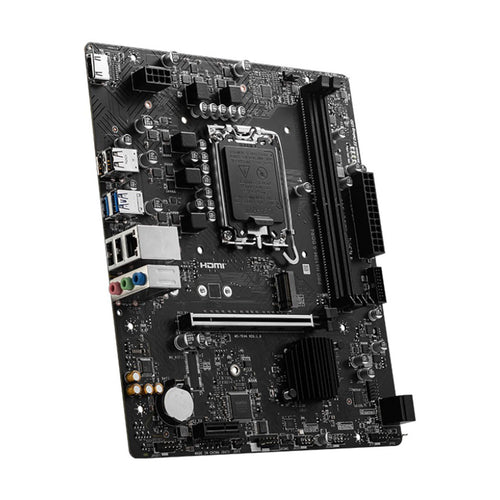

PRO H610M-S DDR4

• Support Intel^® Core™ 14th/ 13th/ 12th Gen Processors, Intel^® Pentium^® Gold and Celeron^® Processors for LGA 1700 socket
• Supports DDR4 Memory, up to 3200(MAX) MHz
• Core Boost : With premium layout and digital power design to support more cores and provide better performance
• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
• Lightning Fast Experience: PCIe 4.0
• Audio Boost: Reward your ears with studio grade sound quality
• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.



  SPECIFICATION


  CHIPSET	INTEL H610
  CPU	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
  	LGA 1700
  MEMORY	2x DDR4, Maximum Memory Capacity 64GB
  	Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
  	Supports Dual-Channel mode
  	Supports non-ECC, un-buffered memory

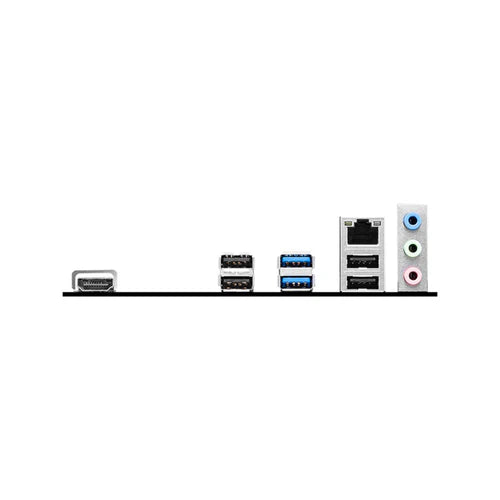

  ONBOARD GRAPHICS	1x HDMI™
  	Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*
  	*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
  SLOT	1x PCI-E x16 slot
  	1x PCI-E x1 slot
  	PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
  	PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
  STORAGE	1x M.2
  	M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices
  	2x SATA 6G
  LAN	Realtek® RTL8111H Gigabit LAN
  AUDIO	Realtek® ALC897 Codec
  	7.1-Channel High Definition Audio
  INTERNAL IO	1x Power Connector(ATX_PWR)
  	1x Power Connector(CPU_PWR)
  	1x CPU Fan
  	1x System Fan
  	2x Front Panel (JFP)
  	1x Chassis Intrusion (JCI)
  	1x Front Audio (JAUD)
  	1x Com Port (JCOM)
  	1x TPM pin header(Support TPM 2.0)
  	4x USB 2.0 ports
  	2x USB 3.2 Gen1 Type A ports
  LED FEATURE	4x EZ Debug LED
  OPERATING SYSTEM	Support for Windows 11 64-bit, Windows 10 64-bit
  PCB INFO	mATX
  	200mmx236.16mm
