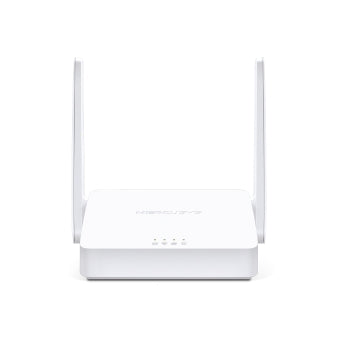

MERCUSYS MW301R ROUTER
- Regular price
- ₱641.00
- Sale price
- ₱641.00
- Regular price
-
₱641.00 - Unit price
- per
Shipping & Returns
Free shipping and returns available on all orders!
We ship all US domestic orders within 5-10 business days!
size chart
Care Instructions
Use a soft damp cloth and a drop of mild soap to remove any haze. Air dry.
Svg Vector Icons : http://www.onlinewebfonts.com/icon
Share
- Wireless
- Wireless Standards
- IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
- Frequency
- 2.4 - 2.4835GHz
- WiFi Speeds
-
11n: Up to 300Mbps (Dynamic)
11g: Up to 54Mbps (Dynamic)
11b: Up to 11Mbps (Dynamic)
- Reception Sensitivity
-
270M: -70dBm@10% PER
130M: -74dBm@10% PER
108M: -77dBm@10% PER
54M: -76dBm@10% PER
11M: -90dBm@8% PER
6M: -92dBm@10% PER
1M: -97dBm@8% PER
- Transmission Power
- <20dBm
- Wireless Security
-
WPA-PSK / WPA2-PSK
- Wireless Functions
- WDS bridge
- Software
- WAN Type
- Dynamic IP/Static IP/PPPoE/L2TP/PPTP
- Management
-
Parental Control
Access control
Local management
Remote management
- DHCP
- Server
- Port Forwarding
- Virtual server, UPnP, DMZ
- Dynamic DNS
- DynDNS、NO-IP
- Firewall Security
- IP and MAC address binding
- Protocols
-
IPv4, IPv6
- Guest Network
- 2.4GHz guest network
- Hardware
- Dimensions
-
114x94x26 mm

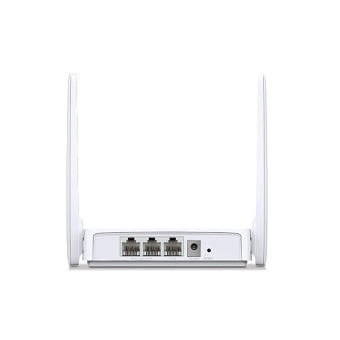

- Interfaces
-
2 10/100Mbps LAN ports
1 10/100Mbps WAN port
- Button
- RESET
- External Power Supply
- 5VDC/0.6A
- Antenna Type
- 2 x 5dBi fixed omni directional antennas
- Others
- Certifications
- CE, ROHS
- Package Contents
-

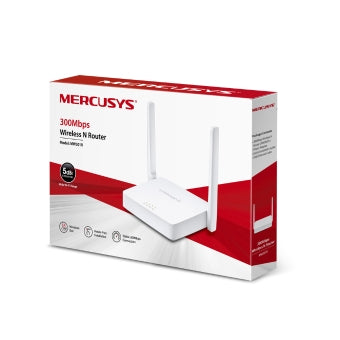

300Mbps Wireless N Router
MW301R
Power adapter
Quick Installation Guide
Ethernet cable
- Environment
-
Operating temperature: 0⁰C ~ 40⁰C (32⁰F ~ 104⁰F)
Storage temperature: -40⁰C ~ 70⁰C (-40⁰F ~ 158⁰F)
Operating humidity: 10% ~ 90%, non-condensing
Storage humidity: 5% ~ 90%, non-condensing
