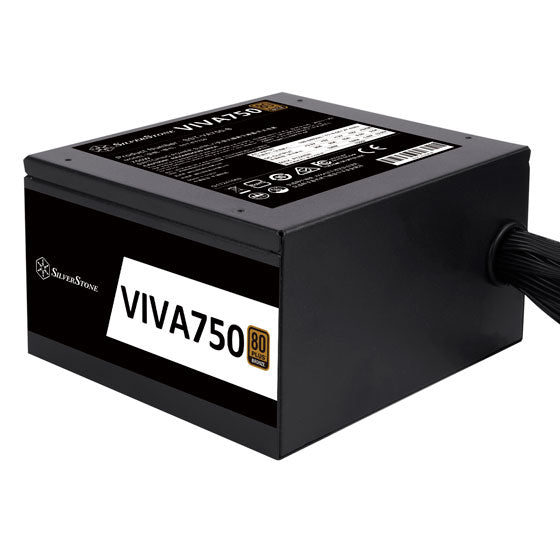

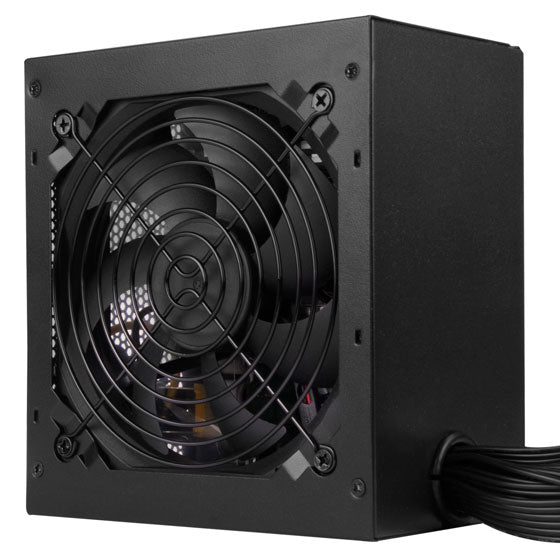

SILVERSTONE VIVA 750WATTS 80+ BRONZE APFC NON-MODULAR POWER SUPPLY

1 4

SILVERSTONE VIVA 750WATTS 80+ BRONZE APFC NON-MODULAR POWER SUPPLY

()

Regular price: ₱4,086.00
Sale price: ₱4,086.00
Regular price: ~~₱4,086.00~~
Unit price: per

Product Specifications Model (safety certification) SST-ET750 Color Black（Lead-Free Paint） Max. DC Output 750W Power density 415W per liter Load Range Output +3.3V +5V +12V +5VSB...

Type: POWER SUPPLY

Sku:

Availability: Out Of Stock

Product variants

Quantity

Shipping & Returns

Free shipping and returns available on all orders!
We ship all US domestic orders within 5-10 business days!

size chart

Care Instructions

Use a soft damp cloth and a drop of mild soap to remove any haze. Air dry.

Description
Reviews

Product Specifications

Model (safety certification)

SST-ET750

Color

Black（Lead-Free Paint）

Max. DC Output

750W

Power density

415W per liter

Load Range

Output	+3.3V	+5V	+12V	+5VSB	-12V
Max.(Amps)	20A	20A	72A	3.0A	0.3A
Peak (Amps)	/	/	/	/	/
Min.(Amps)	2.1A	2.1A	10.8A	0.42A	0.05A
Range (%)	±5%	±5%	±5%	±5%	±10%
Line Reg.(%)	±1%	±1%	±1%	±1%	±1%
Ripple(mVp-p)	50mV	50mV	120mV	50mV	120mV

Combined +3.3V & +5V

120W

Combined +12V

740W

Input Voltage

100 ~ 264 Vrms

Input Frequency Range

47Hz ~ 63Hz

PFC

Active PFC（PF>0.9 at full load）

Efficiency

82% ~ 85% (at 20% ~ 100% loading)

MTBF

100,000 hours

Operating temperature

0°C ~ 40°C

Protection

Over power protection
Over voltage protection
Short circuit protection

Connectors

1 x 24 / 20-Pin motherboard connector (500mm)
2 x 4-Pin + 4-Pin ATX 12V connector (650mm / 150mm)
4 x 8 / 6-Pin PCIe connector ("500mm / 100mm" x 2)
6 x SATA connector ("500mm / 150mm / 150mm" x 2)
6 x 4-Pin Peripheral connector ("500mm / 150mm / 150mm" x 2)

Cooling System

Single 120mm silent fan

Noise Level

18dBA minimum

Certification

80 PLUS Bronze

Form factor

ATX (PS2)

Dimension

150 mm (W) x 86 mm (H) x 140 mm (D)

Weight

1.77 Kg
