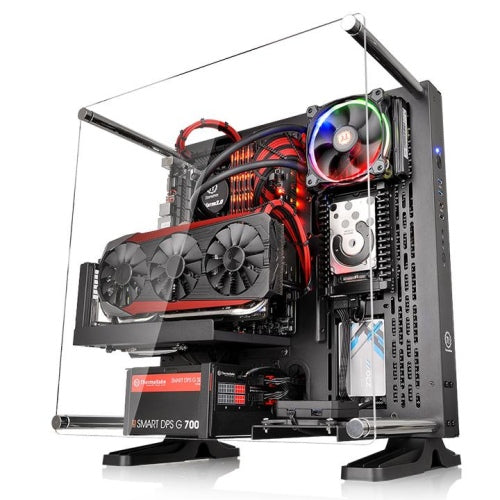

THERMALTAKE CORE P3 TG MODULAR WALL MOUNT ATX CHASSIS (TT LCS CERTIFIED)

()

P/N CA-1G4-00M1WN-00 SERIES Core MODEL Core P3 CASE TYPE Mid Tower DIMENSION (H X W X D) 512 x 333 x 470 mm(20.2 x 13.1...

Type:

Sku:

Availability: In Stock

Product variants

Quantity

Free shipping and returns available on all orders!
We ship all US domestic orders within 5-10 business days!

Use a soft damp cloth and a drop of mild soap to remove any haze. Air dry.

P/N	CA-1G4-00M1WN-00
SERIES	Core
MODEL	Core P3
CASE TYPE	Mid Tower
DIMENSION (H X W X D)	512 x 333 x 470 mm (20.2 x 13.1 x 18.5 inch)
NET WEIGHT	10.3 kg / 22.7 lb
SIDE PANEL	Transparent Window
COLOR	Black
MATERIAL	SPCC
DRIVE BAYS -ACCESSIBLE -HIDDEN	-Accessible: 2 x 3.5" or 3 x 2.5" (Outside the chassis) -Hidden: 2 x 3.5’’ or 2.5’’ (Inside the chassis)
EXPANSION SLOTS	8
MOTHERBOARDS	6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
I/O PORT	USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1
PSU	Standard PS2 PSU (optional)
FAN SUPPORT	Left Side: 3 x 120mm 3 x 140mm
RADIATOR SUPPORT	Left Side: 1 x 360mm or 1 x 240mm or 1 x 120mm 1 x 420mm or 1 x 280mm or 1x 140mm
CLEARANCE	CPU cooler height limitation: 180mmVGA length limitation: 280mm (With Reservoir & Radiator) 450mm (Without Reservoir & Radiator) PSU length limitation: 200mm
