GIGABYTE AORUS P750W GP-AP750GM 750W ATX 12V V2.31 80 PLUS GOLD CERTIF

1 7

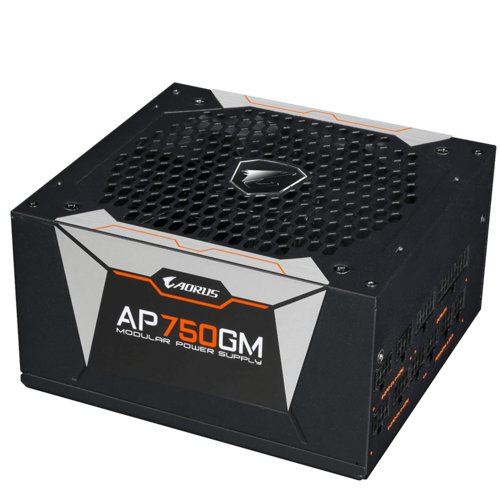

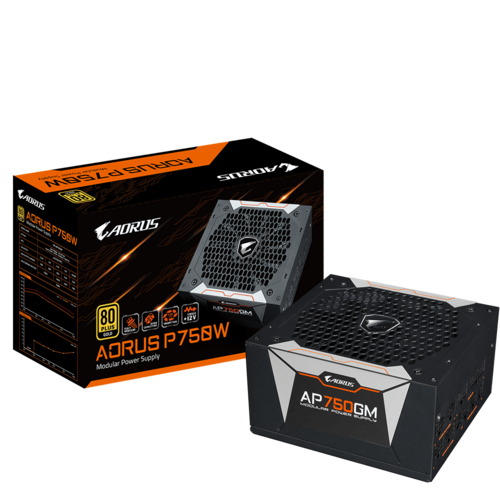

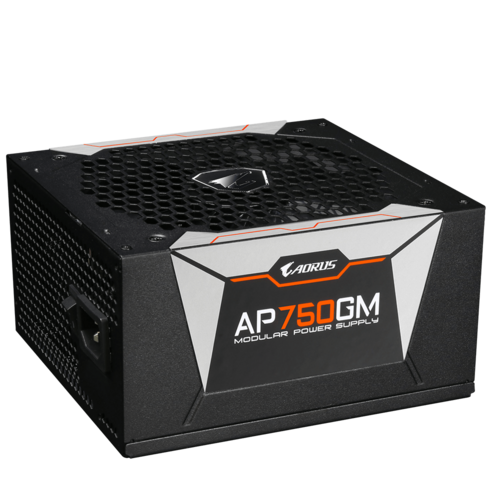

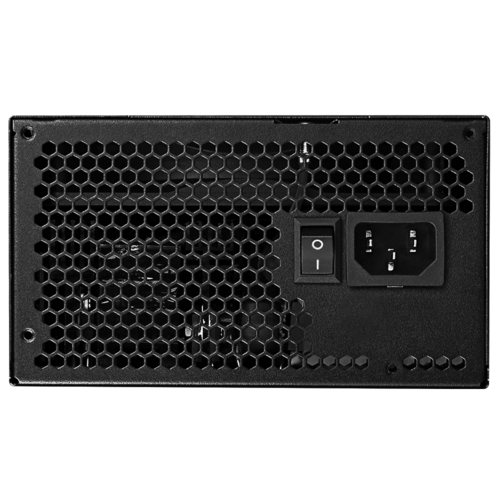

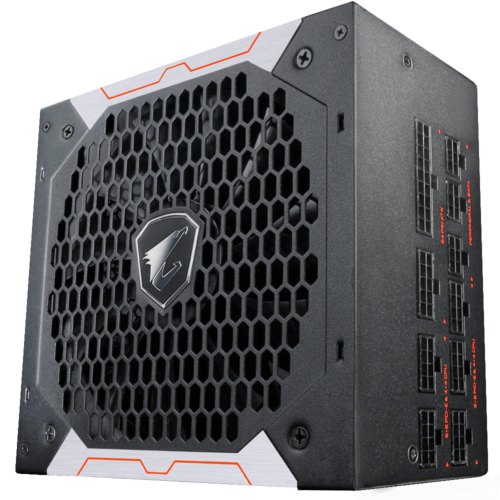

GIGABYTE AORUS P750W GP-AP750GM 750W ATX 12V V2.31 80 PLUS GOLD CERTIFIED FULL MODULAR ACTIVE PFC POWER SUPPLY

()

Regular price: ₱6,813.00
Sale price: ₱6,813.00
Regular price: ~~₱6,813.00~~
Unit price: per

AORUS P750W 80+ GOLD Modular Model GP-AP750GM Type Intel Form Factor ATX 12V v2.31 PFC Active PFC (>0.9 typical) Input Voltage 100-240 Vac (full range)...

Type: POWER SUPPLY

Sku: HCGP0543S

Availability: Out Of Stock

Product variants

Quantity

Shipping & Returns

Free shipping and returns available on all orders!
We ship all US domestic orders within 5-10 business days!

size chart

Care Instructions

Use a soft damp cloth and a drop of mild soap to remove any haze. Air dry.

Description
Reviews

AORUS P750W 80+ GOLD Modular

Model

GP-AP750GM
Type

Intel Form Factor ATX 12V v2.31
PFC

Active PFC (>0.9 typical)
Input Voltage

100-240 Vac (full range)
Input Current

10A
Input Frequency

47-63 Hz
Output Capacity

750W
Dimension

150 x 160 x 86mm
Fan Type

135mm Double ball bearing fan
80 PLUS

Gold
Efficiency

90% at typical load
MTBF

>100,000 hours
Protection

OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal

100ms ~ 150ms
Hold Up Time

> 16m sec at full load (115V)
Cable Type

Flat, All black

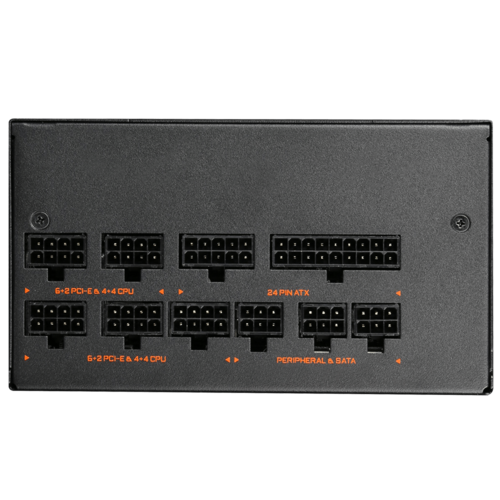

Connectors

ATX/MB 20+4 Pin x 1 : 650mm
CPU/EPS 4+4 Pin x 2 : 800mm*1 , 650mm*1
PCI-e 6+2 Pin x 4 : 750mm*2 , 650mm+150mm*1
SATA x6 + 4 Pin Peripheral x2 :
550mm+100mm+100mm+100mm*1
450mm+100mm+100mm+100mm *1
4 Pin Peripheral x 3 + 4 pin Floppy x 1 : 450mm+100mm+100mm+100mm*1
4 Pin Floppy x 1 : 100mm
